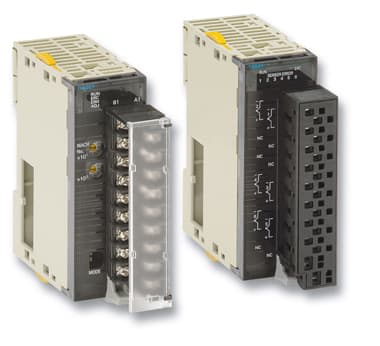

Product Model
CJ1W-AD04U
Selling Points
- 1Universal Input Capabilities: Supports DC voltage (1 to 5 V, 0 to 5 V, 0 to 10 V), DC current (0 to 20 mA, 4 to 20 mA), thermocouple (K, J, T, L, R, S, B), and platinum resistance thermometer inputs.
- 2High Resolution: Features 14-bit resolution for accurate analog input readings.
- 3Isolated Inputs: Ensures no unwanted current paths between input channels, preventing interference.
- 4Compact Design: Measures 90 mm x 31 mm x 89 mm, with a weight of 230 grams, making it easy to integrate into industrial automation systems.
- 5Suitable for Safety Functions: Designed for use in safety-critical applications with reliable and isolated inputs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
IO Connection Terminal Type | Screw Terminals | Relay outputs | 2 MOS FET |
Special function | Isolated | I/O capacity | 4 |
Number of Analog Inputs | 4 | Resolution/Conversion Time | 12000 (250 ms for 4 points) |
Specifications may be subject to change without notice
