Product Model

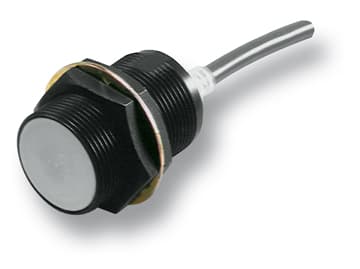

E2EQ-X3B4-IL2 2M
Selling Points
- 1High Precision Sensing Distance: 3 mm ±10% for accurate detection.
- 2Spatter Resistance: Fluororesin coating prevents weld slag buildup.
- 3IO-Link Compatibility: Enables real-time sensor data transmission at 38.4 kbps.
- 4Durable Construction: Shielded M12 design with brass base material.
- 5Versatile Output Options: NO/NC selectable with PNP output type.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Case material | Fluororesin coated brass | IO-Link | Yes |
Operation | NO/NC Selectable | Output | PNP |
Shielded | Shielded | Size | M12 |
Sensing Distance | 3 mm | Connection | Flame-Resistant, PVC cable |
Supply voltage | 10 to 30 VDC | Threaded length (mm) | 31 |
Overall length (mm) | 47 | Mounting | Bracket with 12 mm mounting hole or M12x1 threaded hole. |
Cable Length | 2 m |
Specifications may be subject to change without notice
