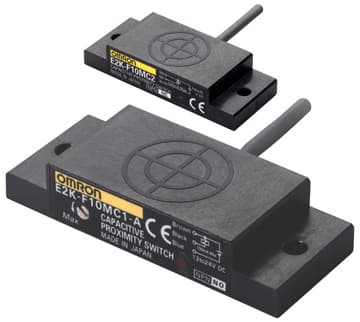

Product Model
E2K-F10MC1 5M
Selling Points
- 1Ultra-Thin Design: Only 10 mm thick, ideal for space-constrained applications.
- 2Versatile Detection: Detects both metallic and non-metallic objects, including water, oil, glass, and plastic.
- 3Adjustable Sensing Distance: Adjustable range from 4 to 10 mm for precise object detection.
- 4High Insulation Resistance: 50 MΩ min. at 500 VDC for reliable operation in harsh conditions.
- 5Durable Construction: Withstands vibrations up to 55 Hz and shock resistance of 500 m/s².
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Case material | Heat-resistant ABS | Connection | PVC cable |
Mounting | Mounts to a flat surface with M3 screws | Output | NPN |
Overall length (mm) | Does not apply, rectangular shape | Shielded | Unshielded |
Size | 10.1 x 20 x 50 mm | Supply voltage | 12 to 24 VDC |
Operation | NO | Threaded length (mm) | Does not apply, rectangular shape |
Cable Length | 5 m |
Specifications may be subject to change without notice
