Product Model

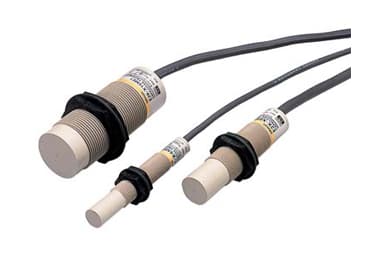

E2K-X8ME1 10M
Selling Points
- 1High Accuracy: The E2K-X8ME1 10M features a sensing distance of 8 mm ±10%, ensuring precise detection of objects.
- 2Industrial-Grade Design: Built with heat-resistant ABS resin and polyacetal clamping nuts, it withstands harsh industrial environments.
- 3Wide Operating Range: Operates from -25°C to 70°C and supports a wide voltage range of 10 to 30 VDC.
- 4IP66 Protection: Offers robust protection against dust and water, making it suitable for various industrial settings.
- 5Easy Installation: Pre-wired models with a standard cable length of 2 m simplify installation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Case material | Heat-resistant ABS | Connection | PVC cable |
Overall length (mm) | 80 | Shielded | Unshielded |
Size | M18 | Output | NPN |
Operation | NO | Supply voltage | 12 to 24 VDC |
Threaded length (mm) | 40 | Mounting | Bracket with 18 mm mounting hole or M18x1 threaded hole. |
Cable Length | 10 m |
Specifications may be subject to change without notice
