Product Model
E2S-W21B 5M
Selling Points

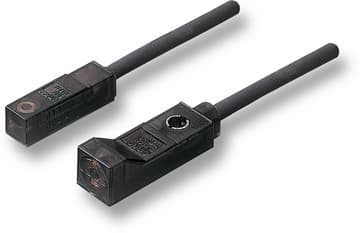

- 1Compact square type design with an 8 mm x 7.4 mm x 20 mm sensing head.
- 2Sensing distance of 2.5 mm with ±15% tolerance.
- 3DC 2-wire models with a power supply voltage range of 12 to 24 VDC.
- 4High response frequency of 1 kHz for stable detection.
- 5IP67 degree of protection and pre-wired models with a 5 m cable length.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Case material | Polyarylate resin | Connection | PVC cable |
Overall length (mm) | Does not apply, rectangular shape | Shielded | Unshielded |
Size | 7.4 x 8 x 23 mm | Sensing Distance | 2.5 mm |
Output | 2 Wire DC | Operation | NO |
Supply voltage | 12 to 24 VDC | Threaded length (mm) | Does not apply, rectangular shape |
Mounting | Mounts to a flat surface with a bracket and M2.5 or M3 screw | Cable Length | 5 m |
Specifications may be subject to change without notice
