Product Model

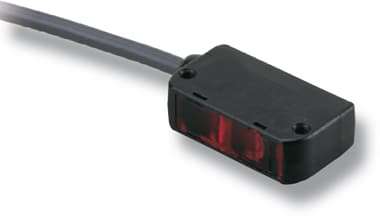

E3S-LS3P 2M
Selling Points
- 1Limited Reflective Sensing: Detects PCBs with limited reflective surfaces.
- 2Wide Sensing Distance: Operates effectively at distances of 20 to 35 mm.
- 3Red LED Light Source: Utilizes a red LED light source with a wavelength of 660 nm.
- 4Pre-wired Model: Comes pre-wired with a standard cable length of 2 meters.
- 5High Durability: Withstands ambient temperatures from -10 to 55°C and humidity up to 85%.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing Material | Plastic | Light Source | Red LED |
Sensing Method | Convergent-reflective | Body Type | Rectangular |
Output | PNP | Max Sensing Distance | 35 mm |
Connection | Pre-wired | Cable Length | 2 m |
Operation | L-ON/D-ON selectable | Supply Voltage | 12 to 24 VDC |
Specifications may be subject to change without notice
