Product Model

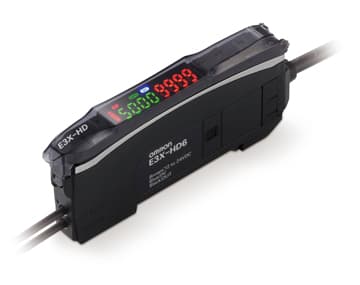

E3X-HD6
Selling Points
- 1High-Speed Detection: Operates at super-high-speed mode (SHS) with NPN outputs at 50 μs and PNP outputs at 55 μs.
- 2Stable Operation: Equipped with Smart Tuning for automatic configuration of settings to optimum values, ensuring long-term stable detection.
- 3Advanced Features: Includes power tuning, differential detection, DPC, timer, zero reset, and Eco mode for versatile operation.
- 4Compact Design: Features a compact look with symbolic buttons and digital displays for improved visibility and operability.
- 5Reliability: Offers protection circuits including power supply reverse polarity protection and output short-circuit protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Amplifier type | Easy usage, Digital | Color mark detection | Yes |
Differential operation | Yes | Housing Material | Plastic |
Infrared LED | Yes | Light Source | Red LED |
Operation | L-ON / D-ON Selectable | Super high speed, 20 渭s max. | Yes |
Supply Voltage | 12-24 VDC | Output | NPN |
Connection | Wire-saving connector | Programmable AND/OR/XOR Logic | Yes |
Window monitoring, twin output | Red LED |
Specifications may be subject to change without notice
