Product Model

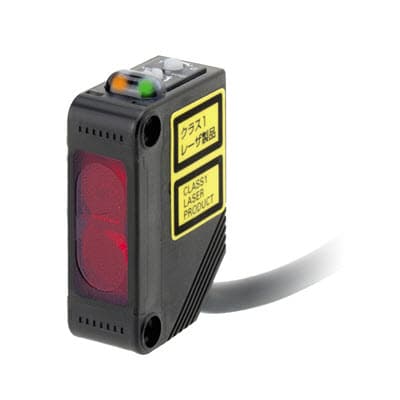

E3Z-LL63 2M
Selling Points
- 1High precision positioning and detection with a sensing distance of 300 mm.
- 2Background suppression for improved accuracy in various environments.
- 3Compact design with a cuboid shape, measuring 10.8 x 20 x 31 mm.
- 4IP67 protection for reliable operation in harsh conditions.
- 5Fast response time of 0.5 ms for quick detection and processing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Body Type | Rectangular | Housing Material | Plastic |
Light Source | FDA Class II laser | Operation | L-ON/D-ON selectable |
Supply Voltage | 12 to 24 VDC | Type | Laser Sensor with Built-in Amplifier |
Sensing Method | Background suppression | Output | NPN |
Max Sensing Distance | 300 mm | Connection | Pre-wired |
Cable Length | 2 m |
Specifications may be subject to change without notice
