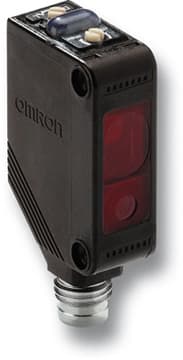

Product Model
E3Z-LS61
Selling Points
- 1Compact Design: Square type with pre-wired models for easy installation.
- 2Distance Settable: Adjustable sensing distance from 20 to 200 mm.
- 3High Sensitivity: Red LED light source (670 nm) for precise detection.
- 4Robust Protection: IP67 rating for dust and water resistance.
- 5Versatile Operation: Light-ON/Dark-ON selectable operation mode.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Body Type | Rectangular - Compact | Housing Material | Plastic |
Light Source | Red LED | Operation | L-ON/D-ON selectable |
Sensing Method | Background suppression | Supply Voltage | 12 to 24 VDC |
Output | NPN | Max Sensing Distance | 200 mm |
Connection | Pre-wired | Cable Length | 2 m |
Specifications may be subject to change without notice
