Product Model

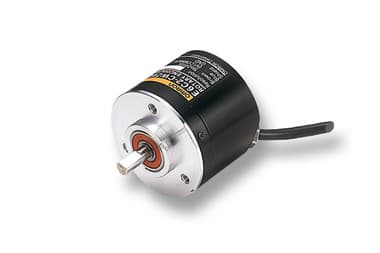

E6C3-CWZ3EH 3600P\u002FR 2M
Selling Points
- 1High-resolution 3600 pulses per rotation for precise position and speed control
- 2IP65 protection ensures reliable performance in harsh industrial environments
- 3Supports max. rotation speed of 5000 RPM for high-speed applications
- 4Pre-wired with a 2m cable for easy and quick installation
- 5Compact 50mm diameter and 8mm shaft for versatile mounting options
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable exit | Radial | Connection | Pre-wired |
Function | Incremental | IP rating | IP65 |
Max. rotation speed | 5000 | Shaft diameter | 8 |
Size (diameter) | 50 | Resolution (pulse/rotation) | 3600 |
Cable Length | 2 m | Output form | Voltage |
Power supply voltage | 5-12 VDC |
Specifications may be subject to change without notice
