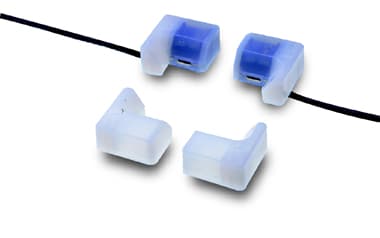

Product Model
EE-SPY802
Selling Points
- 1High Precision Detection: Detects wafer carriers with a sensing distance of 0 to 3 mm.
- 2Infrared Light Source: Utilizes a GaAs infrared LED with a peak wavelength of 940 nm.
- 3Fast Response Time: Responds in 5 ms, ensuring quick and reliable detection.
- 4Robust Construction: Built with ETFE case and PBT base plate for durability.
- 5Pre-Wired Model: Available in pre-wired models with a 2 m cable for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing Material | Plastic | Type | Photomicro |
Cable length | 2 m | Connection | Pre-wired |
Light Source | GaAs Infrared LED | Max Sensing Distance | 3 mm |
Operation | Light-ON | Output | NPN |
Sensing Method | Diffuse-reflective | Special Feature | Mounts to wafer carrier |
Supply Voltage | 12 to 24 VDC |
Specifications may be subject to change without notice
