Product Model

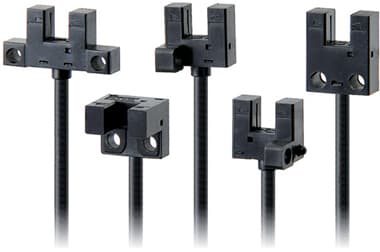

EE-SX950P-W 1M
Selling Points
- 1High Accuracy Sensing: The EE-SX950P-W 1M features a sensing distance of 5 mm with a slot width, ensuring precise detection of objects.
- 2Infrared Light Technology: Equipped with infrared LEDs, this sensor provides reliable operation even in ambient light conditions.
- 3PNP Output Configuration: Offers a PNP output type for easy integration into various control systems.
- 4Robust Construction: Built with PBT material, ensuring durability and resistance to environmental factors.
- 5Flexible Installation Options: Available with a 1-meter cable, making it easy to install in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection | Pre-wired | Housing Material | Plastic |
Light Source | Infrared LED | Max Sensing Distance | 5 mm |
Operation | L-ON/D-ON selectable | Sensing Method | Through-beam |
Supply Voltage | 5 to 24 VDC | Type | Photomicro |
Body Type | Standard | Output | PNP |
Cable length | 1 m |
Specifications may be subject to change without notice
