Product Model

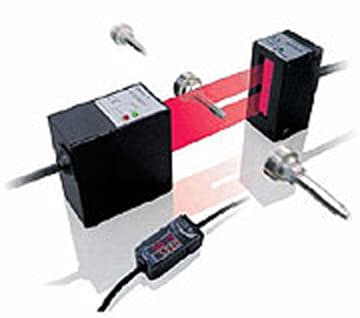

ZX-GT28S11
Selling Points
- 1Achieves micron accuracy with a longest-in-class sensing distance.
- 2Measures objects as small as 0.5 mm in diameter.
- 3Features ±0.1% linearity and 10 μm resolution.
- 4Compatible with various measurement modes, including interrupted beam width and incident beam width.
- 5Includes indicators for laser ON, alarm, and optical axis setting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Analog Output | (-5 to +5V),(1 to 5V),(4 to 20 mA) | Beam Shape | Line |
Cable length | 2 m | Light source | Visible semiconductor laser 650nm |
Resolution | 10 渭m | Safety | Class I |
Sensing method | Through Beam | Supply voltage | 24V 卤 10% |
Height range | 28 mm @ 0 to 500 mm | Output type | NPN |
Specifications may be subject to change without notice
