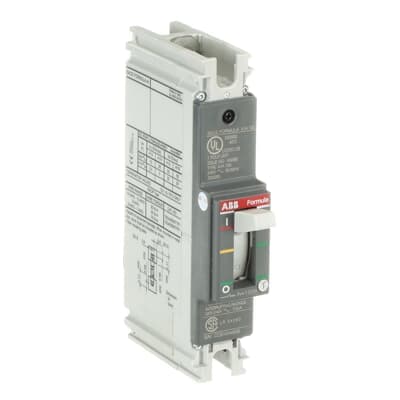

Product Model
A1A 100 TMF 100-1000 1p F F UL
Selling Points
- 1High Amp Rating: 100-1000 amps for reliable electrical distribution.
- 2Thermal Magnetic Trip: Ensures safe operation with thermal magnetic trip device.
- 3UL Certified: Meets UL standards for safety and performance.
- 4Front Terminals: Easy installation with front terminals and thermomagnetic release.
- 5Radwell Warranty: Includes Radwell's 2-year warranty for added peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 1SDL000183R0001 9AKK108467A6707 | Product Net Width | 25.4 mm |
Product Net Height | 130 mm | Product Net Depth / Length | 60 mm |
Product Net Weight | 0.25 kg | Product Main Type | SACE FORMULA |
Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
Version | F | Number of Poles | 1 |
Rated Current (In) | Main Circuit 100 A | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
Rated Insulation Voltage (Ui) | 690 V | Rated Operational Voltage | 240 V AC 125 V DC |
Rated Uninterrupted Current (Iu) | 100 A | Release | TMF |
Release Type | TM | Short-Circuit Performance Level | A |
Standards | UL | Sub-type | A1 |
Terminal Connection Type | Front | Interrupting Rating acc. to UL489 | (240 V) 10 kA |
ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
IDEA Granular Category Code (IGCC) | 4927 >> Molded case circuit breakers | UNSPSC | 39121616 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27370409 |
Manufacturer ID | 1SDA069708R1 |
Specifications may be subject to change without notice
