Product Model

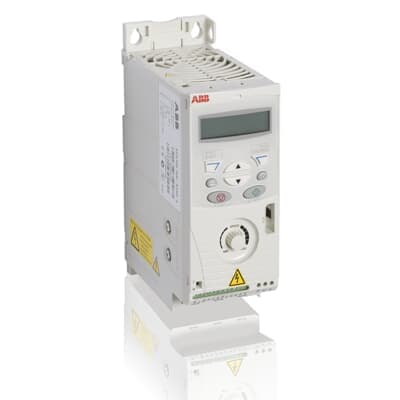

ACS150-01E-06A7-2
Selling Points
- 1Efficient Motor Speed Control: Converts fixed frequency single-phase input to variable frequency three-phase output for precise speed control.
- 2Versatile Connectivity: Equipped with 1 x analogue input, 5 digital inputs, and 1 relay contact set for flexible control options.
- 3Programmable via PC: Easily programmable from a PC via 'Flashdrop' for customized settings and configurations.
- 4High EMC Filters: Includes EMC filters to EN61800-3 for industrial environments, ensuring reliable operation in harsh conditions.
- 5Compact Design: Available in R1 frame size with dimensions 70mm wide x 144mm deep x 201mm high, ideal for cubicle mounting or side/rear mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 2 kg | Product Net Depth / Length | 142 mm |
Product Net Height | 169 mm | Product Net Width | 70 mm |
Package Level 1 Depth / Length | 350 mm | Package Level 1 Height | 130 mm |
Package Level 1 Width | 220 mm | Package Level 1 Units | 0 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R1 | Input Voltage (Uin) | 200 ⦠240 V |
Mounting Type | Module_NO UNIT$ | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 6.7 A |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 1.1 kW | UNSPSC | 39122001 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | FREQUENCY CONVERTER |
Manufacturer ID | 3ABD68865719 |
Specifications may be subject to change without notice
