Product Model

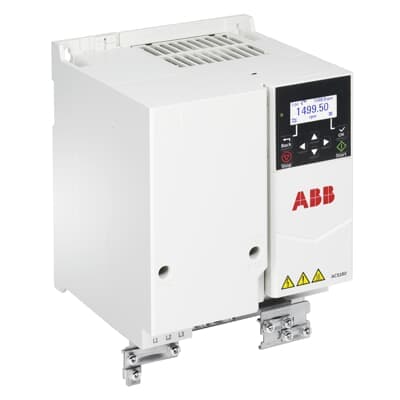

ACS180-04N-033A-4
Selling Points
- 1High efficiency with 98% efficiency at nominal power.
- 2Reliable operation in a wide ambient temperature range (up to 60 °C).
- 3Versatile motor control with sensorless vector control and adaptive programming.
- 4Compact design with built-in EMC filter for reduced high-frequency emissions.
- 5Safe torque off (SIL 3) function ensures machine and personnel safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 3.3 kg | Product Net Depth / Length | 174 mm |
Product Net Height | 205 mm | Product Net Width | 170 mm |
Package Level 1 Depth / Length | 248 mm | Package Level 1 Height | 273 mm |
Package Level 1 Width | 250 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R3 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 25 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 30.5 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 32 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 11 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 15 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 15 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | SCIP | ce087935-c5d0-48c8-89ae-769efc3dfb30 Finland (FI) |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | FREQUENCY CONVERTER |
Manufacturer ID | 3AXD50000874163 |
Specifications may be subject to change without notice
