Product Model

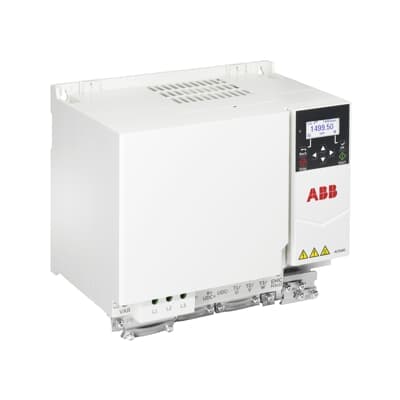

ACS180-04N-038A-4
Selling Points
- 1High-efficiency operation with 98% efficiency at nominal power.
- 2Suitable for heavy-duty applications with ambient temperature up to 60 °C.
- 3Built-in Safe Torque Off (STO) feature for enhanced safety.
- 4Integrated EMC filter for reduced electromagnetic interference.
- 5Scalable and adaptable for various motor types, including induction and permanent magnet motors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 5.3 kg | Product Net Depth / Length | 178 mm |
Product Net Height | 205 mm | Product Net Width | 260 mm |
Package Level 1 Depth / Length | 356 mm | Package Level 1 Height | 275 mm |
Package Level 1 Width | 290 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R4 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 32 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 36 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 38 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 15 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 18.5 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 18.5 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | SCIP | a7e9add0-620e-4316-8bd6-c358d91bc66b Finland (FI) |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | FREQUENCY CONVERTER |
Manufacturer ID | 3AXD50000814459 |
Specifications may be subject to change without notice
