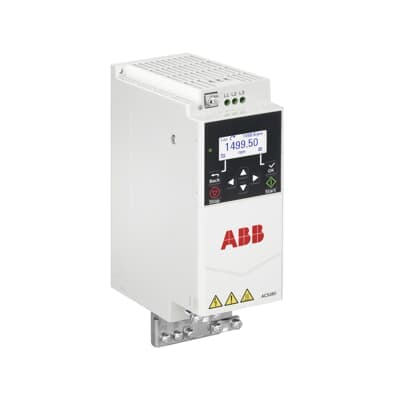

Product Model
ACS180-04S-07A8-2
Selling Points
- 1Reduces high-frequency emissions, ensuring compatibility with industrial automation networks.
- 2Standard feature for SIL 3 and PL e, ensuring machine and personnel safety.
- 3Achieves 98% efficiency at nominal power, reducing energy consumption and CO₂ emissions.
- 4Suitable for side-by-side installation, minimizing cabinet size and cost.
- 5Supports both induction and permanent magnet motors with sensorless vector control for precise torque control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 1.24 kg | Product Net Depth / Length | 143 mm |
Product Net Height | 190 mm | Product Net Width | 70 mm |
Package Level 1 Depth / Length | 225 mm | Package Level 1 Height | 115 mm |
Package Level 1 Width | 220 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R1 | Input Voltage (Uin) | 200 ⦠240 V |
Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 6.9 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 7.5 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 7.8 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 1.1 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 1.5 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 1.5 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | SCIP | a8a72b30-d5e5-4de6-b0f8-01a627cfc18e Finland (FI) |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | FREQUENCY CONVERTER |
Manufacturer ID | 3AXD50000827565 |
Specifications may be subject to change without notice
