Product Model

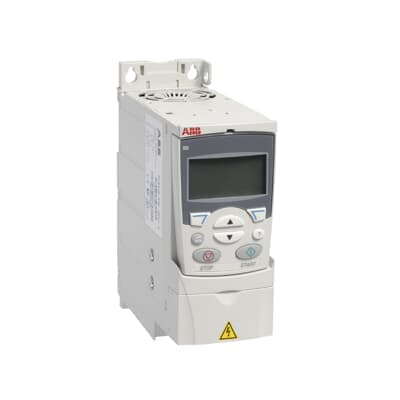

ACS310-03U-08A3-2
Selling Points
- 1Reduces energy consumption by up to 50% compared to direct-on-line motor-driven systems.
- 2Easy to install with uniform dimensions, saving space and installation time.
- 3Includes Modbus EIA-485 interface, C3 EMC filter, and load analyzer for process optimization.
- 4Coated control boards ensure uninterrupted operation and protection against unstable supply networks.
- 5Controls multiple pumps or fans, reducing motor stress and increasing lifetime with interlock functions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 3.1 lb | Product Net Depth / Length | 6.34 in |
Product Net Height | 9.41 in | Product Net Width | 2.76 in |
Number of Phases | 3 | Degree of Protection | IP20 |
Frequency (f) | 50/60 Hz | Frame Size | R1 |
Input Voltage (Uin) | 380 ... 480 V | Mounting Type | Wall-mounting |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 8.3 A | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 2 Hp |
Apparent Power Output | 3.3 kV·A | Efficiency Level | IE2 |
Standby Loss | 7 W | Temperature Rating | Maximum 40 °C |
eClass | ETIM 7 | UNSPSC | 39122001 |
SCIP | f1e04c62-cc4b-446d-ad73-3ee1ba33dd03 Finland (FI) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Product Name | AC Drive | Manufacturer ID | 3AUA0000049473 |
Specifications may be subject to change without notice
