Product Model

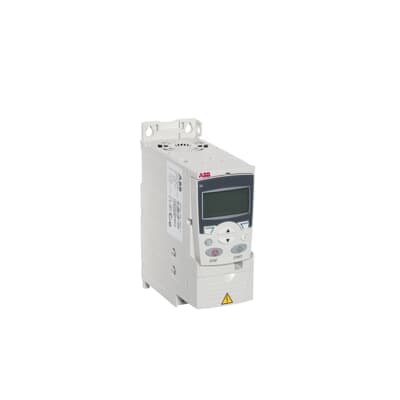

ACS355-DEMOCASE w/US cord
Selling Points
- 1Covers 0.37 to 22 kW / 0.5 to 30 hp, catering to various industrial needs.
- 2Exceptionally compact drives with uniform dimensions, saving space in restricted areas.
- 3Includes Safe Torque-Off function (SIL3) as standard, reducing the need for external safety components.
- 4Designed for quick installation and parameter setting, making it ideal for system integrators and original equipment manufacturers.
- 5Suitable for material handling, food and beverage processing, rubber, plastic, and wood processing applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 17.4 lb | Product Net Depth / Length | 11.06 in |
Product Net Height | 12 in | Product Net Width | 7.68 in |
Number of Phases | 3 | Degree of Protection | IP66 |
Enclosure Type NEMA | Type4X | Frequency (f) | 50/60 Hz |
Frame Size | R0 | Input Voltage (Uin) | 380â¦480 V |
Mounting Type | Wall-mounting | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 1 A |
Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 0.5 Hp | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 0.5 Hp |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | AC Drive | Manufacturer ID | 3AUA0000141652 |
Specifications may be subject to change without notice
