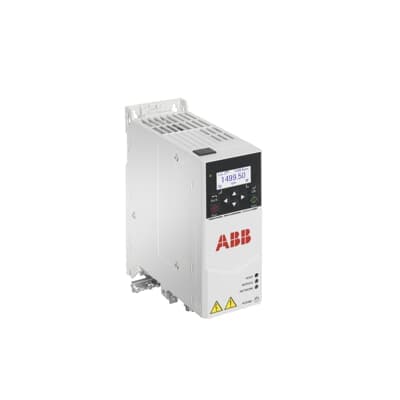

ABB ACS380-040S-02A4-1 Variable Frequency Drive | Precision Control

ABB ACS380-040S-02A4-1

Selling Points

1Seamlessly integrates with automation systems for efficient data transfer.
2Offers precise speed control for induction and permanent magnet motors.
3Designed with coated control boards and reliable earth fault protection for maximum uptime.
4Compact size (8 in x 3 in x 7 in) with IP20 enclosure for easy installation.
5Suitable for mixers, conveyors, EOT cranes, and textile machinery with adaptive programming options.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product Net Weight	1.4 kg	Product Net Depth / Length	176 mm
Product Net Height	223 mm	Product Net Width	70 mm
Package Level 1 Depth / Length	280 mm	Package Level 1 Height	270 mm
Package Level 1 Width	145 mm	Package Level 1 Units	0 carton
Number of Phases	3	Degree of Protection	IP20
Enclosure Type NEMA	Open Type	Frequency (f)	47.5 ... 63 Hz
Frame Size	R0	Input Voltage (Uin)	200 â¦ 240 V
Mounting Type	Module_NO UNIT$	Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>)	1.8 A
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>)	2.3 A	Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>)	2.4 A
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>)	0.25 kW	Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>)	0.37 kW
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>)	0.37 kW	Efficiency Level	IE2
UNSPSC	39122001	WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Product Name	FREQUENCY CONVERTER	Manufacturer ID	3ABD00045156

Specifications may be subject to change without notice
