Product Model

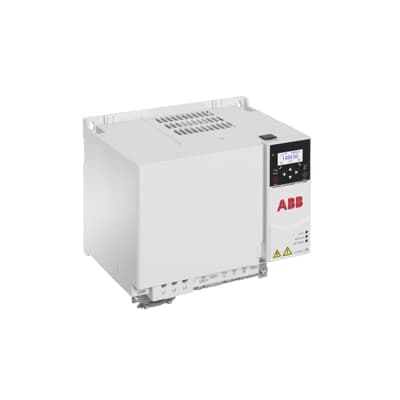

ACS380-040S-038A-4
Selling Points
- 1Robust Design and Compact Size: Ideal for machine building with a robust and compact design.
- 2Precise Motor Control: Excellent motor control for high starting torque, accurate speed control, and stable torque.
- 3Seamless Integration: Preconfigured fieldbus protocols for easy integration with major industrial automation networks.
- 4Built-in EMC Filters: Ensures electromagnetic compatibility with built-in EMC filters.
- 5Versatile Applications: Suitable for mixers, conveyors, cranes, and other constant-torque applications in various industries.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 5.3 kg | Product Net Depth / Length | 176 mm |
Product Net Height | 240 mm | Product Net Width | 260 mm |
Package Level 1 Depth / Length | 355 mm | Package Level 1 Height | 270 mm |
Package Level 1 Width | 290 mm | Package Level 1 Units | 0 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R4 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 32 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 36 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 38 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 15 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 18.5 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 18.5 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Product Name | FREQUENCY CONVERTER | Manufacturer ID | 3ABD00046105 |
Specifications may be subject to change without notice
