Product Model

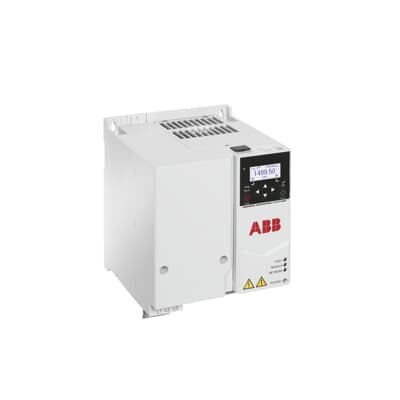

ACS380-040S-25A0-4
Selling Points
- 1High-performance motor control with world-class connectivity options.
- 2Integrated icon-based LCD control panel for easy operation.
- 3Adaptive programming for customizing drive settings to specific applications.
- 4Functional safety features via PROFIsafe over PROFINET for safe motor stop.
- 5Wide voltage range from 380 to 480 VAC input/output.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 3.3 kg | Product Net Depth / Length | 176 mm |
Product Net Height | 223 mm | Product Net Width | 170 mm |
Package Level 1 Depth / Length | 280 mm | Package Level 1 Height | 270 mm |
Package Level 1 Width | 245 mm | Package Level 1 Units | 0 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R3 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 17 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 23.8 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 25 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 7.5 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 11 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 11 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Product Name | FREQUENCY CONVERTER | Manufacturer ID | 3ABD00045130 |
Specifications may be subject to change without notice
