Product Model

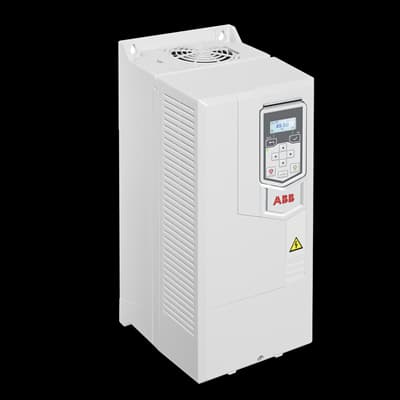

ACS530-01-039A-4
Selling Points
- 1Designed for high-temperature and high-humidity environments with enhanced coating and independent air ducts.
- 2Compact design facilitates easy installation in cabinets, reducing installation time and costs.
- 3Graphic control charts and customizable parameter windows simplify drive configuration and commissioning.
- 4Built-in STO (Safe Torque Off) ensures safety of equipment and personnel, meeting EU safety standards.
- 5Optimized pump and fan control reduce energy consumption, helping to save costs throughout the life cycle.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 14.5 kg | Product Net Depth / Length | 228 mm |
Product Net Height | 490 mm | Product Net Width | 203 mm |
Package Level 1 Depth / Length | 610 mm | Package Level 1 Height | 425 mm |
Package Level 1 Width | 290 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R3 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 36 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 39 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 18.5 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 18.5 kW | Apparent Power Output | 26.0 kV·A |
Efficiency Level | IE2 | Standby Loss | 16 W |
Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
Manufacturer ID | 3ABD00039912-D |
Specifications may be subject to change without notice
