Product Model

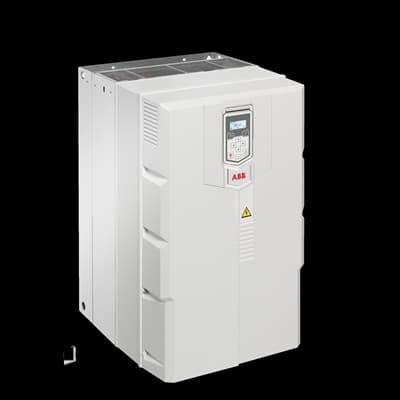

ACS530-01-363A-4
Selling Points
- 1Built with enhanced coated circuit board and independent cooling air ducts, ensuring stable operation in harsh environments.
- 2Features built-in energy optimization functions and complies with EU Ecodesign regulations, achieving IE2 Efficiency level.
- 3Simplifies installation and operation, making it easy to integrate into various industrial settings.
- 4Facilitates quick commissioning and troubleshooting with a user-friendly graphical interface.
- 5Includes Safe Torque Off (STO) function, ensuring the safety of equipment and personnel in compliance with EU safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 84.8 kg | Product Net Depth / Length | 418 mm |
Product Net Height | 680 mm | Product Net Width | 300 mm |
Package Level 1 Depth / Length | 1160 mm | Package Level 1 Height | 650 mm |
Package Level 1 Width | 490 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R9 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 345 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 363 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 200 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 200 kW | Apparent Power Output | 251.0 kV·A |
Efficiency Level | IE2 | Standby Loss | 80 W |
Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
Manufacturer ID | 3ABD00039909-D |
Specifications may be subject to change without notice
