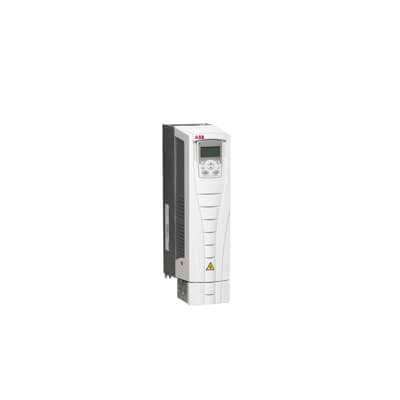

Product Model
ACS550-01-023A-4
Selling Points
- 1Suitable for pumps, fans, and conveyors with constant torque duty.
- 2Easy to use with built-in assistance for intuitive operation.
- 3Minimizes harmonic distortion for cleaner power output.
- 4Ensures precise motor control performance across a wide range of applications.
- 5Meets UL, cUL, CE, C-Tick, and GOST R marking requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 9 kg | Product Net Depth / Length | 565 mm |
Product Net Height | 365 mm | Product Net Width | 225 mm |
Package Level 1 Depth / Length | 580 mm | Package Level 1 Height | 400 mm |
Package Level 1 Width | 250 mm | Number of Phases | 3 |
Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
Frequency (f) | 47.5 ... 63 Hz | Frame Size | R2 |
Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 15.4 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 23 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 7.5 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 11 kW |
Efficiency Level | IE2 | UNSPSC | 39122001 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency Converter |
Manufacturer ID | 3AUA0000002417-D |
Specifications may be subject to change without notice
