Product Model

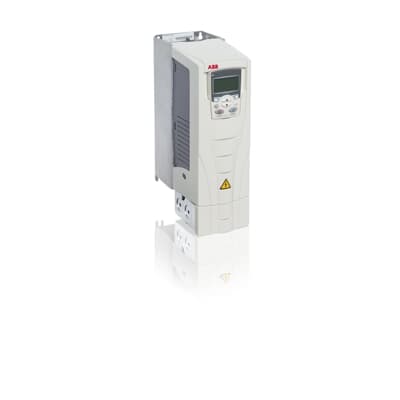

ACS550-01-06A9-4
Selling Points
- 1Built-in counters display energy savings in kilowatt hours, carbon dioxide emissions, or local currencies.
- 2No customizing or special product engineering required; ideal for a wide range of applications.
- 3Meets IEC EN61800-3:2004 Category C3/C2 standards for industrial environments.
- 4Suitable for both variable and constant torque applications.
- 5Features an intelligent control panel with assistance and intuitive use options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 6.1 kg | Product Net Depth / Length | 465 mm |
Product Net Height | 365 mm | Product Net Width | 225 mm |
Package Level 1 Depth / Length | 490 mm | Package Level 1 Height | 400 mm |
Package Level 1 Width | 240 mm | Number of Phases | 3 |
Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
Frequency (f) | 47.5 ... 63 Hz | Frame Size | R1 |
Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 5.4 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 6.9 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 2.2 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 3 kW |
Efficiency Level | IE2 | UNSPSC | 39122001 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency Converter |
Manufacturer ID | 3AUA0000002415-D |
Specifications may be subject to change without notice
