Product Model

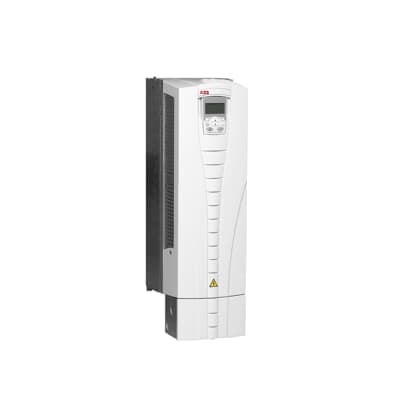

ACS550-01-087A-4
Selling Points
- 1Saves energy with built-in counters displaying kWh, CO2 emissions, and cost.
- 2Analyzes process data for optimized drive and motor dimensioning.
- 3Utilizes FlashDrop tool for faster and easier drive setup and commissioning.
- 4Includes real-time clock for timed tracing of faults and parameter setting.
- 5Features IP21 enclosure rating for reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 26 kg | Product Net Depth / Length | 800 mm |
Product Net Height | 410 mm | Product Net Width | 310 mm |
Package Level 1 Depth / Length | 800 mm | Package Level 1 Height | 400 mm |
Package Level 1 Width | 300 mm | Package Level 1 Units | 0 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R4 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 72 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 87 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 37 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 45 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3AUA0000013108-D |
Specifications may be subject to change without notice
