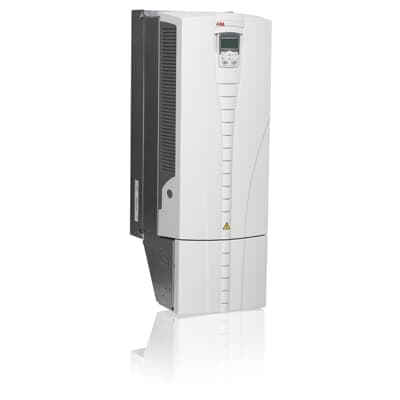

ABB ACS550-01-195A-4 Variable Frequency Drive for Efficient Motor Control

Selling Points

1Save energy with built-in counters that display kilowatt hours, carbon dioxide emissions, or local currencies, making it easy to monitor and optimize energy usage.
2Perfectly match for fans and pumps with enhanced PFC application, controlling up to 7 pumps simultaneously and supporting soft start functions for circulation.
3Features a 2-function key control panel with built-in help keys and modified parameter lists, ensuring easy configuration and debugging.
4The drive is compact and supports side-by-side installation, making installation and debugging fast and efficient.
5Enjoy global warranty, technical support, and service from ABB, ensuring reliable operation across various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product Net Weight	76 kg	Product Net Depth / Length	955 mm
Product Net Height	420 mm	Product Net Width	350 mm
Package Level 1 Depth / Length	970 mm	Package Level 1 Height	560 mm
Package Level 1 Width	370 mm	Number of Phases	3
Degree of Protection	IP21	Enclosure Type NEMA	Type1
Frequency (f)	47.5 ... 63 Hz	Frame Size	R6
Input Voltage (Uin)	380 â¦ 480 V	Mounting Type	Wall-mounted_NO UNIT$
Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>)	162 A	Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>)	205 A
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>)	90 kW	Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>)	110 kW
Efficiency Level	IE2	UNSPSC	39122001
WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm)	Product Name	Frequency Converter
Manufacturer ID	3ABD68294479

Specifications may be subject to change without notice
