Product Model

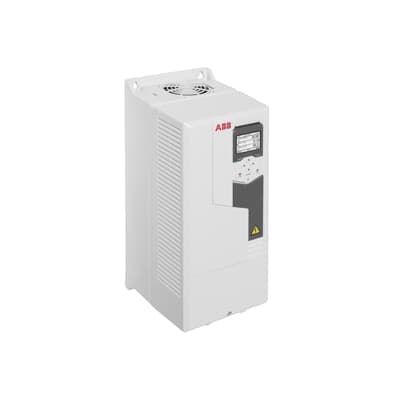

ACS580-01-046A-4
Selling Points
- 1High power output: 22 kW for efficient motor control.
- 2Compact design: 203 mm wide, 229 mm deep, and 490 mm high.
- 3Robust protection: IP21 rating for reliable operation in harsh environments.
- 4Versatile connectivity: 2 analogue inputs, 6 digital inputs, 2 analogue outputs, and 3 relay contact sets.
- 5Wide voltage range: Operates at 380-480 V three-phase with ±10% tolerance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 14.9 kg | Product Net Depth / Length | 228 mm |
Product Net Height | 454 mm | Product Net Width | 203 mm |
Package Level 1 Units | 0 carton | Number of Phases | 3 |
Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
Frequency (f) | 47.5 ... 63 Hz | Frame Size | R3 |
Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 37.7 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 42.8 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 45 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 18.5 kW |
Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 22 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 22 kW |
Efficiency Level | IE2 | UNSPSC | 39122001 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency Converter |
Manufacturer ID | 3ABD50000038963 |
