Product Model

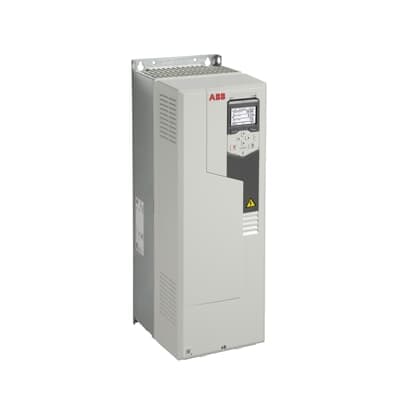

ACS580-01-073A-4
Selling Points
- 1Controls a broad range of variable and constant torque applications, including pumps, fans, and general-purpose use.
- 2Includes built-in features that simplify ordering, delivery, and commissioning, reducing setup time and costs.
- 3Equipped with a PC tool and control panel for easy drive setup, commissioning, and maintenance.
- 4Boosts energy efficiency with the energy optimizer feature, operating in scalar and vector control modes.
- 5Features a robust design with coated circuit boards, minimized airflow, and earth fault protection for safe operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 19 kg | Product Net Depth / Length | 258 mm |
Product Net Height | 600 mm | Product Net Width | 203 mm |
Package Level 1 Units | 0 carton | Number of Phases | 3 |
Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
Frequency (f) | 47.5 ... 63 Hz | Frame Size | R4 |
Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 61 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 68.4 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 73 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 30 kW |
Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 37 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 37 kW |
Efficiency Level | IE2 | UNSPSC | 39122001 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency Converter |
Manufacturer ID | 3ABD00045434-D |
Specifications may be subject to change without notice
