Product Model

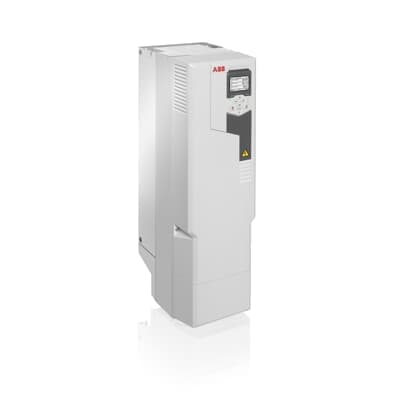

ACS580-01-088A-4
Selling Points
- 145 kW for efficient motor control.
- 2Operates in VxF, Sensorless Vector, or Full Closed-loop Flux Vector modes.
- 3Dual channel SIL3 safe torque off (STO) for enhanced safety.
- 4RS-485/Modbus RTU communications and 24V AC/DC input for control unit power.
- 5Compatible with 380-480V three-phase input voltage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 30 kg | Product Net Depth / Length | 295 mm |
Product Net Height | 732 mm | Product Net Width | 203 mm |
Package Level 1 Depth / Length | 510 mm | Package Level 1 Height | 830 mm |
Package Level 1 Width | 280 mm | Package Level 1 Units | 0 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R5 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 72 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 82.7 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 88 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 37 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 45 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 45 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD00045435-D |
Specifications may be subject to change without notice
