Product Model

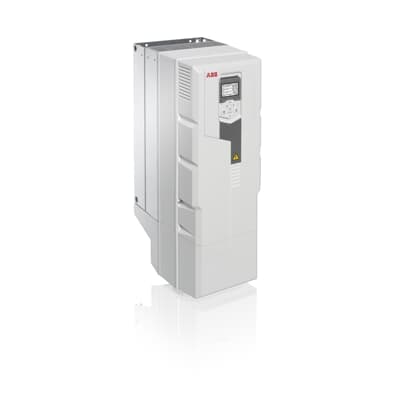

ACS580-01-145A-4
Selling Points
- 1Effortless Setup and Commissioning: Straightforward settings menu and assistants enable fast setup and commissioning.
- 2Robust Design: Rugged and robust design ensures reliable operation in demanding industrial environments.
- 3High Power Output: Nominal power of 75 kW and maximum current of 145 A for efficient motor control.
- 4Advanced Safety Features: Dual channel SIL3 safe torque off (STO) and 24V AC/DC input for control unit backup.
- 5Versatile Applications: Plug-in ready to control compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans in various industries.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 45 kg | Product Net Depth / Length | 369 mm |
Product Net Height | 727 mm | Product Net Width | 252 mm |
Package Level 1 Depth / Length | 580 mm | Package Level 1 Height | 850 mm |
Package Level 1 Width | 310 mm | Package Level 1 Units | 0 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R6 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 105 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 138 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 145 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 55 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 75 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 75 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD00045437-D |
Specifications may be subject to change without notice
