Product Model

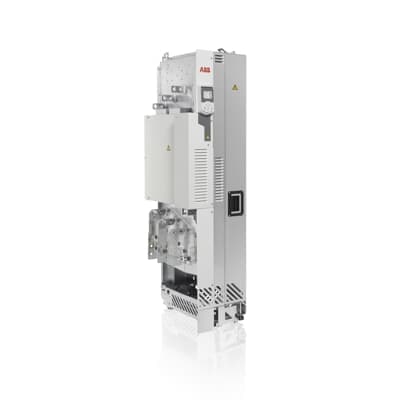

ACS580-04-650A-4
Selling Points
- 1Optimizes energy yields with high efficiency levels, reducing operational costs.
- 2Controls compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans in various industries.
- 3Features a straightforward settings menu and assistants for fast commissioning and maintenance.
- 4Built with a rugged and robust design suitable for different environments and applications.
- 5Includes essential functions like RFI filter, Modbus RTU fieldbus interface, and Safe Torque Off (STO) input.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 161 kg | Product Net Depth / Length | 529 mm |
Product Net Height | 1462 mm | Product Net Width | 345 mm |
Package Level 1 Depth / Length | 1000 mm | Package Level 1 Height | 500 mm |
Package Level 1 Width | 400 mm | Package Level 1 Units | 0 carton |
Number of Phases | 3 | Degree of Protection | IP00 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R10 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Cabinet-built_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 477 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 634 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 650 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 250 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 355 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 355 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD00036863-D |
Specifications may be subject to change without notice
