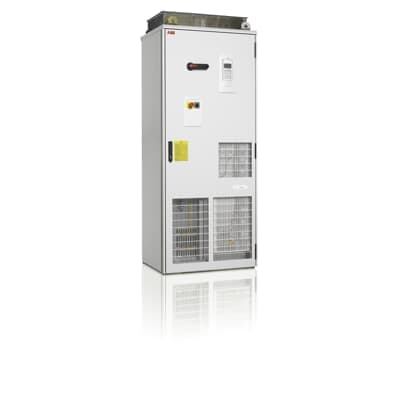

Product Model
ACS800-07-1090-5
Selling Points
- 1High Power Rating: 1,000 Horsepower
- 2Wide Input Range: 380 to 500 Volts AC
- 3Advanced Motor Control: Direct Torque Control (DTC) for precise speed and torque control
- 4Versatile Braking Options: Flux Braking and Dynamic Braking
- 5User-Friendly Interface: Keypad Included for Easy Operation
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 1200 kg | Product Net Depth / Length | 646 mm |
Product Net Height | 2130 mm | Product Net Width | 1630 mm |
Number of Phases | 3 phase | Frequency (f) | 48 ... 63 Hz |
Frame Size | 2xD4+2xR8i | Input Voltage (Uin) | 380 ⦠500 V |
Mounting Type | Cabinet built | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 941 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 1208 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 1258 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 630 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 900 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 900 kW | UNSPSC | 39122001 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency Converter |
Manufacturer ID | 68299187 |
Specifications may be subject to change without notice
