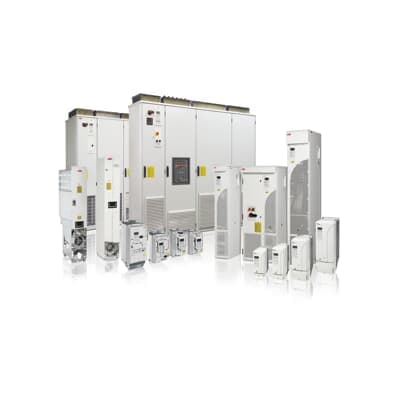

Product Model
ACS800-U7-0170-7
Selling Points
- 1Ultra-low harmonic drive for reduced energy consumption and improved motor performance.
- 2125 HP capacity and 133 amps output current for robust industrial applications.
- 3NEMA 1/UL Type 1 enclosure with IP21 rating for enhanced safety and durability.
- 4Local or remote mounted LCD display and keypad for easy operation and monitoring.
- 53-phase input and output, suitable for a wide range of industrial motor control needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 400 kg | Product Net Depth / Length | 646 mm |
Product Net Height | 2130 mm | Product Net Width | 830 mm |
Number of Phases | 3 phase | Frequency (f) | 48 ... 63 Hz |
Frame Size | R7 | Input Voltage (Uin) | 525 ... 690 V |
Mounting Type | Cabinet built | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 131 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 155 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 125 Hp |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 150 Hp | UNSPSC | 39122001 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency Converter |
Manufacturer ID | 68363560 |
Specifications may be subject to change without notice
