Product Model

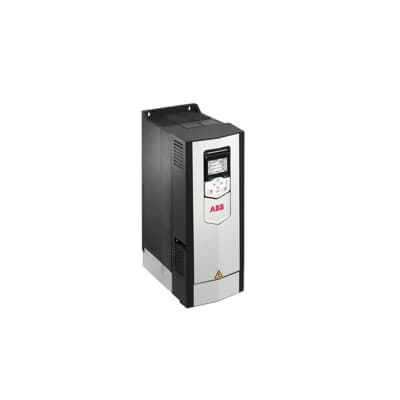

ACS880-01-032A-3
Selling Points
- 1Compact Design: The ACS880-01-032A-3 is designed for easy installation and commissioning in a compact package.
- 2Harmonic Filtering: Equipped with a choke for harmonic filtering to ensure efficient operation.
- 3Robust Communication: Supports various communication protocols like CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIsafe, PROFIBUS, and PROFINET IO.
- 4High Efficiency: Achieves high efficiency levels up to IE2 with minimal standby loss.
- 5Versatile Applications: Suitable for a wide range of industrial applications including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, and more.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 10 kg | Product Net Depth / Length | 261 mm |
Product Net Height | 475 mm | Product Net Width | 172 mm |
Package Level 1 Depth / Length | 620 mm | Package Level 1 Height | 320 mm |
Package Level 1 Width | 250 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R3 | Input Voltage (Uin) | 380 ⦠415 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 25 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 30 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 32 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 11 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 15 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 15 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD00035967-D |
Specifications may be subject to change without notice
