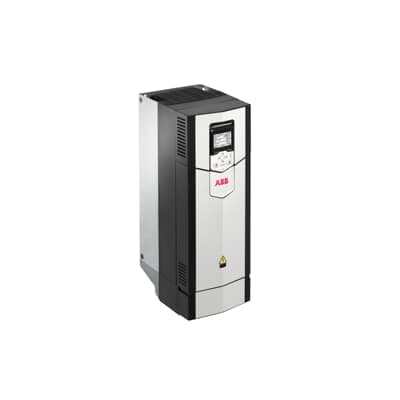

Product Model
ACS880-01-052A-5
Selling Points
- 1Compact Design for Easy Installation and Maintenance
- 2Integrated Safety Features Including Safe Torque Off (STO)
- 3Supports Various Motor Types Including Synchronous Reluctance Motors
- 4Intuitive Control Panel with USB Connection and Removable Memory Unit
- 5High Performance 2-Port Ethernet and Wide Range of Fieldbuses and Feedback Devices
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 18.5 kg | Product Net Depth / Length | 274 mm |
Product Net Height | 576 mm | Product Net Width | 203 mm |
Package Level 1 Depth / Length | 685 mm | Package Level 1 Height | 330 mm |
Package Level 1 Width | 290 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R4 | Input Voltage (Uin) | 380 ⦠500 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 40 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 49 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 52 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 22 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 30 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 30 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD00037852-D |
Specifications may be subject to change without notice
