Product Model

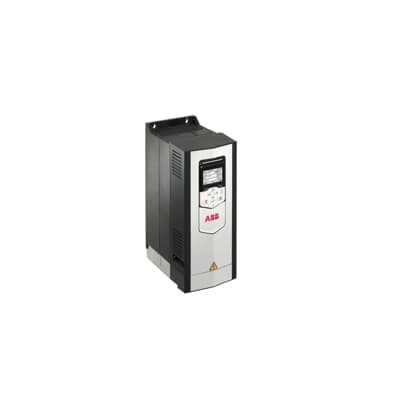

ACS880-01-09A4-3
Selling Points
- 1Compliant with IE2 standards, ensuring low standby loss and efficient operation.
- 2Supports multiple communication protocols including CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, and PROFINET IO.
- 3Wall-mountable with optional cabinet installation for added protection, suitable for diverse industrial applications.
- 4IP21 protection rating with NEMA Type 1 enclosure, ensuring reliable operation in harsh environments.
- 5Controls cranes, extruders, winches, conveyors, mixers, compressors, centrifuges, test benches, elevators, pumps, and fans.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 6 kg | Product Net Depth / Length | 226 mm |
Product Net Height | 409 mm | Product Net Width | 155 mm |
Package Level 1 Depth / Length | 575 mm | Package Level 1 Height | 285 mm |
Package Level 1 Width | 250 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R1 | Input Voltage (Uin) | 380 ⦠415 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 8 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 9.5 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 10 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 3 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 4 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 4 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD00035963-D |
Specifications may be subject to change without notice
