Product Model

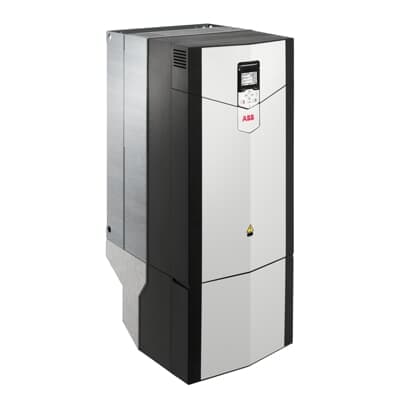

ACS880-01-361A-5
Selling Points
- 1Direct Torque Control (DTC): Precise open and closed loop control for optimal performance.
- 2Built-in Safety Features: Simplified configuration and enhanced safety protocols.
- 3Wide Compatibility: Compatible with all major automation networks for seamless integration.
- 4Energy Efficiency: Energy optimizer and energy efficiency information for monitoring and saving energy.
- 5Customizable Options: Removable memory unit for easy drive commissioning and replacement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 98 kg | Product Net Depth / Length | 413 mm |
Product Net Height | 955 mm | Product Net Width | 380 mm |
Package Level 1 Depth / Length | 1160 mm | Package Level 1 Height | 650 mm |
Package Level 1 Width | 490 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R9 | Input Voltage (Uin) | 380 ⦠500 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 302 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 343 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 361 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 160 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 200 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 200 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD00037861-D |
Specifications may be subject to change without notice
