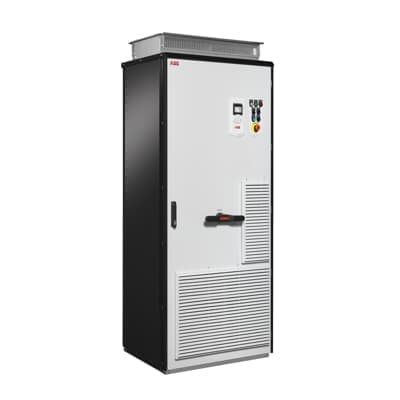

Product Model
ACS880-07-1070A-5
Selling Points
- 1Advanced Direct Torque Control (DTC): Precise speed and torque control for all applications.
- 2Built-in Safety Features: Safe torque off (STO) as standard and optional safety functions module FSO-12.
- 3Extensive Connectivity Options: Communication with all major automation networks and remote monitoring capabilities.
- 4User-Friendly Interface: Intuitive control panel with USB connection and graphical PC tools for easy commissioning and maintenance.
- 5Robust Design: Coated circuit boards, high IP class variants, and a nine-year maintenance interval for maximum reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 1470 kg 3241 lb | Product Net Depth / Length | 698 mm 27.480 in |
Product Net Height | 2145 mm 84.449 in | Product Net Width | 1830 mm 72.047 in |
Package Level 1 Depth / Length | 1100 mm 43.307 in | Package Level 1 Height | 2376 mm 93.543 in |
Package Level 1 Width | 2294 mm 90.315 in | Number of Phases | 3 |
Degree of Protection | IP22 | Enclosure Type NEMA | Type1 |
Altitude | 1000 m | Operating Humidity (RH<span style="font-size:x-small;">amb</span>) | 5 ... 95 |
Power Factor | 0.98 | Sound dB (A) | 73 dB(A) |
Multiple Battery Information | Lithium Coin, BR2032, 2pcs, 3V, 200mAh, 3g | Frequency (f) | 48 ... 63 Hz |
Frame Size | 1xD8T+2xR8i | Input Voltage (Uin) | 380 ... 500 V |
Mounting Type | Cabinet-built | Communication Protocol | CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIsafe PROFIBUS PROFINET IO TCP/IP |
Number of Hardware Interfaces | Industrial Ethernet 0 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 1 | Includes | Control unit PC connection |
Analog Inputs | 4 | Analog Outputs | 4 |
Number of Digital In/Outputs | 14 / 10 | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 800 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 1027 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 1070 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 560 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 710 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 710 kW | Apparent Power Output | 927 kV·A |
Efficiency Level | IE2 | Standby Loss | 163 W |
Temperature Rating | Maximum 40 °C Minimum 0 °C | Ecodesign Exemption | Energy efficiency data according to IEC-61800-9-2 is available from the ecodesign tool (https://ecodesign.drivesmotors.abb.com). |
Output Current, Heavy-Duty Use (UL) | 800 A | Output Current, Light-Overload Use (UL) | 1027 A |
Output Current, Normal Use (UL) | 1070 A | Output Power, Heavy-Duty Use (UL) | 700 Hp |
Output Power, Light-Overload Use (UL) | 900 Hp | Output Power, Normal Use (UL) | 900 Hp |
UNSPSC | 39122001 | SCIP | F97239A0-8F1B-4B36-A0F6-34D1783CB8EB Finland (FI) |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency converter |
Manufacturer ID | 3AUA0000142694 |
Specifications may be subject to change without notice
