Product Model

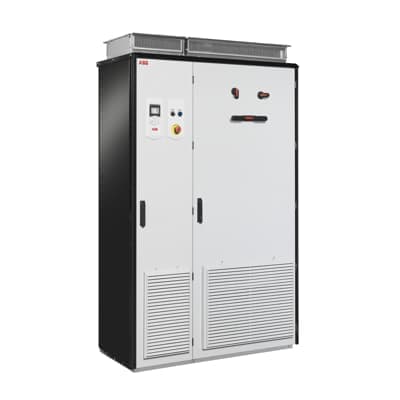

ACS880-17-0101A-5
Selling Points
- 1Direct torque control (DTC) for precise speed and torque control.
- 2Integrated safety functions including Safe Torque Off (STO) and Safe Limited Speed (SLS).
- 3Global compatibility with major automation networks and certifications including CE, UL, and TÜV.
- 4High IP42 protection class for harsh environments and easy installation options.
- 5Customizable with extensive user-definable software settings for specific application needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 705 lb | Product Net Depth / Length | 26.496 in |
Product Net Height | 84.449 in | Product Net Width | 16.929 in |
Package Level 1 Depth / Length | 43.307 in | Package Level 1 Height | 93.898 in |
Package Level 1 Width | 45.039 in | Number of Phases | 3 |
Degree of Protection | IP22 | Enclosure Type NEMA | Type1 |
Altitude | 1000 m | Operating Humidity (RH<span style="font-size:x-small;">amb</span>) | 5 ... 95 |
Power Factor | 1 | Sound dB (A) | 70 dB(A) |
Multiple Battery Information | Lithium Coin, CR2032, 2pcs, 3V, 220mAh, 6g | Frequency (f) | 48 ... 63 Hz |
Frame Size | R8 | Input Voltage (Uin) | 380 ... 500 V |
Communication Protocol | TCP/IP | Number of Hardware Interfaces | Industrial Ethernet 0 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 1 |
Includes | Control unit PC connection | Analog Inputs | 2 |
Analog Outputs | 2 | Number of Digital In/Outputs | 7 / 5 |
Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 77 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 91 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 101 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 45 kW |
Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 55 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 55 kW |
Apparent Power Output | 87 kV·A | Temperature Rating | Maximum 40 °C Minimum 0 °C |
Ecodesign Exemption | Energy efficiency data is not provided for the drive. The regenerative drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.c). | Output Current, Heavy-Duty Use (UL) | 77 A |
Output Current, Light-Overload Use (UL) | 96 A | Output Current, Normal Use (UL) | - A |
Output Power, Heavy-Duty Use (UL) | 60 Hp | Output Power, Light-Overload Use (UL) | 75 Hp |
Output Power, Normal Use (UL) | - Hp | UNSPSC | 39122001 |
SCIP | 82D82DAE-9725-4373-865D-AA949B97DE50 Finland (FI) | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency converter | Manufacturer ID | 3AXD50000158010 |
Specifications may be subject to change without notice
