Product Model

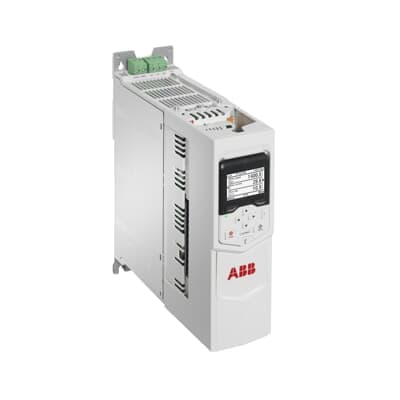

ACS880-M04-010A-5
Selling Points
- 1High-Performance Motor Control: The ACS880-M04-010A-5 features ABB's premium motor control technology, including direct torque control (DTC) for precise speed and torque management.
- 2Adaptable and Configurable: Easily adaptable to various machine building needs with IEC 61131-3 programming capabilities and customizable options for different applications.
- 3Integrated Safety Features: Equipped with safe torque off (STO) as standard and optional plug-in safety functions module for enhanced application safety.
- 4Comprehensive Connectivity: Supports a wide range of fieldbus protocols, EMC filters, encoder and resolver interfaces, chokes, and brake resistors for seamless integration.
- 5Energy Efficiency and Precision: Offers energy efficiency calculators and the Drive composer PC tool for easy commissioning and configuration, ensuring optimal machine performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 5.6 kg 12.3 lb | Product Net Depth / Length | 234 mm 9.21 in |
Product Net Height | 476 mm 18.74 in | Product Net Width | 100 mm 3.94 in |
Package Level 1 Depth / Length | 450 mm 17.72 in | Package Level 1 Height | 360 mm 14.17 in |
Package Level 1 Width | 200 mm 7.87 in | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Altitude | 1000 m |
Operating Humidity (RH<span style="font-size:x-small;">amb</span>) | 5 ... 95 | Power Factor | 0.98 |
Sound dB (A) | 39 dB(A) | Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
Frequency (f) | 47.5 ... 63 Hz | Frame Size | R2 |
Input Voltage (Uin) | 380 ... 500 V | Mounting Type | Module |
Communication Protocol | CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIsafe PROFIBUS PROFINET IO TCP/IP | Number of Hardware Interfaces | Industrial Ethernet 0 Other 3 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 0 |
Includes | PC connection | Analog Inputs | 2 |
Analog Outputs | 2 | Number of Digital In/Outputs | 6 / 5 |
Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 9 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 9.7 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 10.5 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 4 kW |
Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 4 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 4 kW |
Apparent Power Output | 7.3 kV·A | Efficiency Level | IE2 |
Standby Loss | 31 W | Temperature Rating | Maximum 40 °C |
Output Current, Heavy-Duty Use (UL) | 9 A | Output Current, Light-Overload Use (UL) | 9.7 A |
Output Power, Heavy-Duty Use (UL) | 5 Hp | Output Power, Light-Overload Use (UL) | 5 Hp |
UNSPSC | 39122001 | SCIP | e551ec43-3ae3-4814-b2e4-9b0cbea5e237 Finland (FI) |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency converter |
Manufacturer ID | 3AXD50000036405 |
Specifications may be subject to change without notice
