Product Model

AF1250-30-00-71

Manufacturer

ABB

Category

AC contactor

Product ID

91940

In Stock
Last updated: 2025/4/18
View Specifications

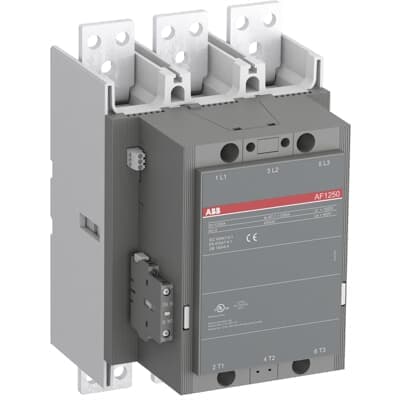

ABB AF1250-30-00-71

Selling Points

  • 1Wide Control Voltage Range: Operates with 250 to 500 VAC/VDC, managing large control voltage variations.
  • 2High Load Capacity: Handles up to 1210 A maximum load current, suitable for demanding industrial use.
  • 3Built-in Surge Protection: Ensures reliable operation in unstable networks with built-in surge suppression.
  • 4Compact Design: Features a block type design for easy extension with add-on auxiliary contact blocks.
  • 5Durable Construction: Withstands short voltage dips and sags, operating in temperatures from -40 to 70°C.
Product Details
AF1250-30-00-71
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product Net Width
210 mm
Product Net Depth / Length
242 mm
Product Net Height
344 mm
Product Net Weight
14.6 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 1260 A (1000 V) 55 °C 1040 A (1000 V) 70 °C 875 A (690 V) 40 °C 1260 A (690 V) 55 °C 1040 A (690 V) 70 °C 875 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 600 V
Rated Control Circuit Voltage (Uc)
50 Hz 250 ... 500 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 985 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 985 V·A Pull-in at Max. Rated Control Circuit Voltage DC 910 V·A
Terminal Type
Main Circuit: Bars
Horsepower Rating NEMA
(230 V AC) Three Phase 300 Hp (460 V AC) Three Phase 600 Hp (575 V AC) Three Phase 600 Hp
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 1210 A
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Manufacturer ID
1SFL647001R7100
