Product Model

AF1350-30-00-70

Manufacturer

ABB

Category

AC contactor

Product ID

87905

In Stock
Last updated: 2025/4/24
View Specifications

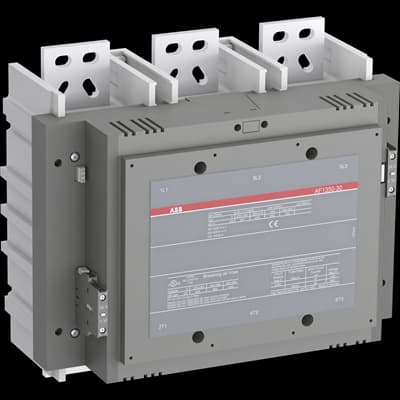

ABB AF1350-30-00-70

Selling Points

  • 1High Power Rating: Supports up to 1000 hp with 1350 A maximum load current.
  • 2Wide Voltage Range: Operates on 100 to 250 VAC/VDC, ensuring flexibility in various applications.
  • 3Robust Design: Built with IP00/IP20 enclosures for durability and reliability.
  • 4Advanced Features: Includes built-in surge suppression and add-on auxiliary contact blocks for enhanced functionality.
  • 5Versatile Compatibility: Suitable for controlling single and three-phase motors, as well as switching power circuits efficiently.
Product Details
AF1350-30-00-70
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
392 mm
Product Net Weight
32 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 1350 A (1000 V) 55 °C 1150 A (1000 V) 70 °C 1000 A (690 V) 40 °C 1350 A (690 V) 55 °C 1150 A (690 V) 70 °C 1000 A
Rated Operational Current AC-3 (Ie)
(220 / 230 / 240 V) 55 °C 860 A
Rated Operational Power AC-3 (Pe)
(415 V) 550 kW (440 V) 560 kW (500 V) 560 kW (690 V) 800 kW (1000 V) 560 kW (380 / 400 V) 475 kW (220 / 230 / 240 V) 257 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 8000 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1600 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 4500 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 10000 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 6000 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 1000 V
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Terminal Type
Main Circuit: Bars
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 1350 A (600 V AC) 1350 A
Horsepower Rating UL/CSA
(220 ... 240 V AC) Three Phase 400 Hp (440 ... 480 V AC) Three Phase 800 Hp (550 ... 600 V AC) Three Phase 1000 Hp
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Manufacturer ID
1SFL657001R7000
