Product Model

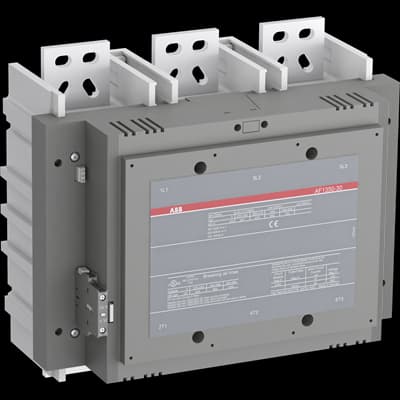

AF1350-30-01E 100-250V ac/dc
Selling Points
- 1Operates on 100-250V AC/DC, managing large control voltage variations.
- 2Built-in surge protection ensures reliable operation in unstable networks.
- 3Block type design with add-on auxiliary contact blocks for easy extension.
- 4Handles up to 1350 A at 1000 V, suitable for heavy-duty applications.
- 5Compatible with both AC and DC coils, offering flexibility in control circuit configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 438 mm | Product Net Depth / Length | 244 mm |
Product Net Height | 392 mm | Product Net Weight | 32 kg |
Number of Main Contacts NO | 3 | Number of Main Contacts NC | 0 |
Number of Auxiliary Contacts NO | 1 | Number of Auxiliary Contacts NC | 0 |
Rated Operational Voltage | Main Circuit 1000 V | Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 1350 A (1000 V) 55 °C 1150 A (1000 V) 70 °C 1000 A (690 V) 40 °C 1350 A (690 V) 55 °C 1150 A (690 V) 70 °C 1000 A |
Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 860 A | Rated Operational Power AC-3 (Pe) | (415 V) 500 kW (440 V) 560 kW (500 V) 560 kW (690 V) 800 kW (1000 V) 560 kW (380 / 400 V) 475 kW (220 / 230 / 240 V) 257 kW |
Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 1000 V | Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V |
Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A | Terminal Type | Main Circuit: Bars |
Maximum Operating Voltage UL/CSA | Main Circuit 1000 V | General Use Rating UL/CSA | (1000 V AC) 1350 A (600 V AC) 1350 A |
Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 400 Hp (440 ... 480 V AC) Three Phase 800 Hp (550 ... 600 V AC) Three Phase 1000 Hp | Object Classification Code | Q |
ETIM 7 | EC000066 - Power contactor, AC switching | ETIM 8 | EC000066 - Power contactor, AC switching |
ETIM 9 | EC000066 - Power contactor, AC switching | eClass | V11.0 : 27371003 |
UNSPSC | 39121529 | IDEA Granular Category Code (IGCC) | 4755 >> Contactors |
Manufacturer ID | 1SFL657001R9103 |
Specifications may be subject to change without notice
