Product Model

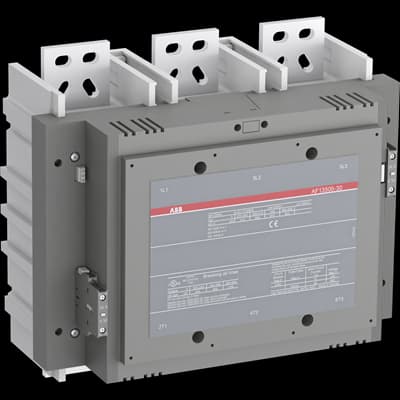

AF1350B-30-22-70
Selling Points
- 1Handles up to 1350A AC1 and 960A AC3 for robust motor control.
- 2Operates on 100-250V AC/DC, suitable for various industrial applications.
- 3Compact size with reduced width, ideal for space-constrained installations.
- 4Features electronic coil with built-in surge suppression, ensuring stable operation.
- 5Constructed with high-quality materials, designed to withstand harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 438 mm | Product Net Depth / Length | 244 mm |
Product Net Height | 392 mm | Product Net Weight | 32 kg |
Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
Manufacturer ID | 1SFL657063R7022 |
Specifications may be subject to change without notice
