Product Model

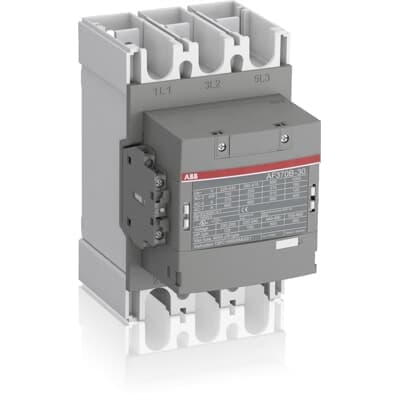

AF370B-30-22-13
Selling Points
- 1Operates safely with control voltages from 100 to 250 VAC/VDC, managing large voltage variations.
- 2Handles up to 600 A at 690 V and 520 A at 1000 V, making it suitable for high-power applications.
- 3Ensures reliable operation in unstable networks with built-in surge suppression.
- 4Offers a compact solution with a block type design, easy to integrate into existing electrical systems.
- 5Compatible with add-on auxiliary contact blocks and a wide range of accessories for customization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 140 mm | Product Net Depth / Length | 180 mm |
Product Net Height | 225 mm | Product Net Weight | 3.9 kg |
Number of Main Contacts NO | 3 | Number of Main Contacts NC | 0 |
Number of Auxiliary Contacts NO | 2 | Number of Auxiliary Contacts NC | 2 |
Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. | Rated Operational Voltage | Main Circuit 1000 V |
Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 400 A (1000 V) 60 °C 350 A (1000 V) 70 °C 290 A (690 V) 40 °C 600 A (690 V) 60 °C 500 A (690 V) 70 °C 400 A | Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 370 A (440 V) 55 °C 370 A (500 V) 55 °C 350 A (690 V) 55 °C 315 A (1000 V) 55 °C 100 A (380 / 400 V) 55 °C 370 A (220 / 230 / 240 V) 55 °C 370 A |
Rated Operational Power AC-3 (Pe) | (415 V) 200 kW (440 V) 200 kW (500 V) 250 kW (690 V) 315 kW (1000 V) 200 kW (380 / 400 V) 200 kW (220 / 230 / 240 V) 110 kW | Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2960 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 600 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1208 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3700 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1709 A |
Rated Operational Current DC-1 (Ie) | (100 V) 1 Pole, 40 °C 520 A (100 V) 1 Pole, 60 °C 500 A (100 V) 1 Pole, 70 °C 400 A (110 V) 1-Pole, 40 °C 520 A (110 V) 1-Pole, 60 °C 500 A (110 V) 1-Pole, 70 °C 400 A (110 V) 2 Poles in Series, 40 °C 520 A (110 V) 2 Poles in Series, 60 °C 500 A (110 V) 2 Poles in Series, 70 °C 400 A (110 V) 3 Poles in Series, 40 °C 520 A (110 V) 3 Poles in Series, 60 °C 500 A (110 V) 3 Poles in Series, 70 °C 400 A (175 V) 2 Poles in Series, 40 °C 520 A (175 V) 2 Poles in Series, 60 °C 500 A (175 V) 2 Poles in Series, 70 °C 400 A (200 V) 2 Poles in Series, 40 °C 520 A (200 V) 2 Poles in Series, 60 °C 500 A (200 V) 2 Poles in Series, 70 °C 400 A (220 V) 2 Poles in Series, 40 °C 520 A (220 V) 2 Poles in Series, 60 °C 500 A (220 V) 2 Poles in Series, 70 °C 400 A (220 V) 3 Poles in Series, 40 °C 520 A (220 V) 3 Poles in Series, 60 °C 500 A (220 V) 3 Poles in Series, 70 °C 400 A (260 V) 3 Poles in Series, 40 °C 520 A (260 V) 3 Poles in Series, 60 °C 500 A (260 V) 3 Poles in Series, 70 °C 400 A (300 V) 3 Poles in Series, 40 °C 520 A (300 V) 3 Poles in Series, 60 °C 500 A (300 V) 3 Poles in Series, 70 °C 400 A (340 V) 3 Poles in Series, 40 °C 520 A (340 V) 3 Poles in Series, 60 °C 500 A (340 V) 3 Poles in Series, 70 °C 400 A (72 V) 1-Pole, 40 °C 520 A (72 V) 1-Pole, 60 °C 500 A (72 V) 1-Pole, 70 °C 400 A (72 V) 2 Poles in Series, 40 °C 520 A (72 V) 2 Poles in Series, 60 °C 500 A (72 V) 2 Poles in Series, 70 °C 400 A (72 V) 3 Poles in Series, 40 °C 520 A (72 V) 3 Poles in Series, 60 °C 500 A (72 V) 3 Poles in Series, 70 °C 400 A (90 V) 1 Pole, 40 °C 520 A (90 V) 1 Pole, 60 °C 500 A (90 V) 1 Pole, 70 °C 400 A | Rated Operational Current DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 450 A (110 V) 2 Poles in Series, 60 °C 450 A (110 V) 2 Poles in Series, 70 °C 400 A (110 V) 3 Poles in Series, 40 °C 450 A (110 V) 3 Poles in Series, 60 °C 450 A (110 V) 3 Poles in Series, 70 °C 400 A (220 V) 3 Poles in Series, 40 °C 450 A (220 V) 3 Poles in Series, 60 °C 450 A (220 V) 3 Poles in Series, 70 °C 400 A (72 V) 2 Poles in Series, 40 °C 450 A (72 V) 2 Poles in Series, 60 °C 450 A (72 V) 2 Poles in Series, 70 °C 400 A (72 V) 3 Poles in Series, 40 °C 450 A (72 V) 3 Poles in Series, 60 °C 450 A (72 V) 3 Poles in Series, 70 °C 400 A |
Rated Operational Current DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 450 A (110 V) 2 Poles in Series, 60 °C 450 A (110 V) 2 Poles in Series, 70 °C 400 A (110 V) 3 Poles in Series, 40 °C 450 A (110 V) 3 Poles in Series, 60 °C 450 A (110 V) 3 Poles in Series, 70 °C 400 A (220 V) 3 Poles in Series, 40 °C 450 A (220 V) 3 Poles in Series, 60 °C 450 A (220 V) 3 Poles in Series, 70 °C 400 A (72 V) 2 Poles in Series, 40 °C 450 A (72 V) 2 Poles in Series, 60 °C 450 A (72 V) 2 Poles in Series, 70 °C 400 A (72 V) 3 Poles in Series, 40 °C 450 A (72 V) 3 Poles in Series, 60 °C 450 A (72 V) 3 Poles in Series, 70 °C 400 A | Mechanical Durability | 5 million |
Maximum Mechanical Switching Frequency | 300 cycles per hour | Rated Control Circuit Voltage (Uc) | 50 Hz / 60 Hz 100 ... 250 V DC Operation 100 ... 250 V |
Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 17.5 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 17.5 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 385 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 385 V·A Pull-in at Max. Rated Control Circuit Voltage DC 410 W | Terminal Type | Main Circuit: Bars |
General Use Rating UL/CSA | (600 V AC) 520 A | Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 125 hp (220 ... 240 V AC) Three Phase 150 hp (440 ... 480 V AC) Three Phase 300 hp (550 ... 600 V AC) Three Phase 350 hp |
Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
IDEA Granular Category Code (IGCC) | 4755 >> Contactors | E-Number (Sweden) | 3210458 |
Manufacturer ID | 1SFL607063R1322 |
