Product Model

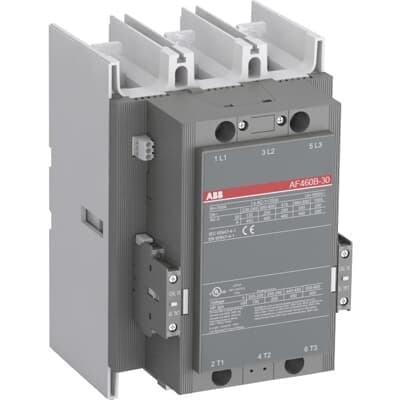

AF460B-30-22-70
Selling Points
- 1Versatile Industrial Application: Suitable for motor starting, isolation, and distribution applications up to 1000V.
- 2Wide Control Voltage Range: Operates with a wide control voltage range of 100-250V AC/DC.
- 3High Durability: Designed for 5 million operations with a mechanical durability of 5 million cycles.
- 4Advanced Safety Features: Equipped with gG Type Fuses for short-circuit protection and built-in surge protection.
- 5Compact Design: Block type design allows for easy extension with add-on auxiliary contact blocks and various accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 186 mm | Product Net Depth / Length | 216 mm |
Product Net Height | 278 mm | Product Net Weight | 10.6 kg |
Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 895 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
Manufacturer ID | 1SFL597063R7022 |
Specifications may be subject to change without notice
