Product Model

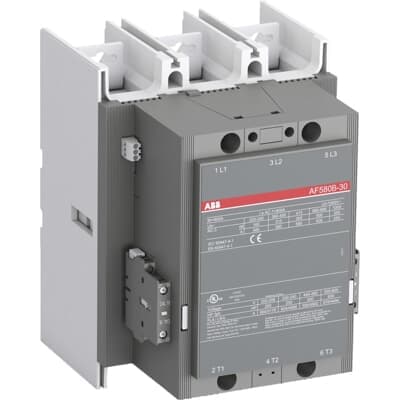

AF580B-30-22-69
Selling Points
- 1Operates with control voltages from 48 to 130V AC/DC.
- 2Supports up to 600 HP at 575/600V AC and 250 HP at 230/240V AC.
- 3Meets IEC and UL standards with a maximum operational voltage of 1000V.
- 4Suitable for motor starting, isolation, bypass, and distribution applications.
- 5Features thermal overload relays and high mechanical durability with 3 million cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 210 mm | Product Net Depth / Length | 242 mm |
Product Net Height | 283 mm | Product Net Weight | 13.6 kg |
Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 1020 V·A | Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C |
Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
Manufacturer ID | 1SFL617063R6922 |
Specifications may be subject to change without notice
